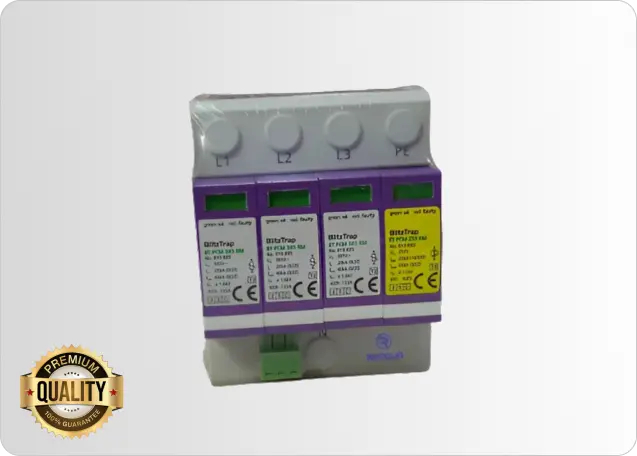

Surge Protection Device

surge protection device

Product Specifications:

UL Type designation SPD Type 1b
Repetitive impulse 5,000 hits
Response time <1 ns
Brand Renown Earth
Classification LED Lighting Surge Protector
Model No RES-SPD
Usage LED surge protector reduces the maintenance cost.
Line Voltage 120/240 Split Phase, 50/60 Hz

What is Surge Protection Device?

Surge protection is the safeguarding of networks and electrical equipment from abnormally high voltage peaks induced by switching activities and lightning strikes. Internal and exterior lightning protection are combined in an efficient lightning protection system. It protects the system’s power supply, data, and signals. As part of your inner lightning protection plan, use the dependable surge protection solutions offered in our many product lines.

A surge protector is too recognized as a spike suppressor, surge suppressor, or surge diverter. It is a device intended to protect electrical devices from voltage spikes.

It guards the appliances by detouring the fault current to the ground. SPD is intended to restrict transient overvoltages of environmental inception and redirects the flow waves to earth to restrict the abundance of this overvoltage to a worth that isn’t unsafe for the electrical establishment, electric switchgear, and control gear.

What are the principle and principles concepts of the surge protector device?

The basic principle and protection concept in which Surge Protection Device is installed:

Make an abstract circle around the thing you would like to protect. Surge protectors must be fitted at all sites where wires cross this circle. This guarantees that the region inside the safe circuit is shielded in a way that prevents conducted overvoltage.

The underlying specification is IEC 62305 for lightning protection. It outlines lightning protection procedures and detailed risk analysis in terms of the need, breadth, and price of the protection concept.

There are four surge protection device types:

Type 1 Surge protector device (SPD):

  • On the line side of the main service entry, this SPD surge protection device is installed. A 10/350 µs current wave characterizes Type-1 SPD, which is employed for outdoor applications.
  • It protects against external power surges which are caused by lightning or because of utility capacitor bank switching. It is considered being the first line of defense of your home or office.
  • Based on the device’s life cycle, built-in burglar alarms show when they should be replaced. It is sometimes referred to as a secondary surge arrester.

 Type 2 Surge protector device (SPD):

  • The SPD device is installed on the load side of the main service entry. A current wave of 8/20 µs characterizes Type-2 SPD.
  • It can protect a branch circuit or a service entry from leftover motor surges, lightning energy, and other surges. Its primary aim is to reduce transient voltage while also protecting sensitive electronics and Mp/Mc-based boards.
  • It is employed in commercial and industrial settings.



Type 3 Surge protector device (SPD):

  • Type-3 SPD is distinguished by current waves (8/20 µs) and voltage waves (1.2/50 µs). Its primary role is to reduce low-level surges that might harm vulnerable electronic circuits in televisions, computers, and other electrical appliances.
  • It is considered being the last line of defense in surge protective networks. It is known as power strips.

Type 4 Surge protector device (SPD):

  • It is referred to as a surge protection module, and it protects PLCs, servo motors, and other industrial electronics.
  • This surge protector equipment offers hard-wired surge protection.

The SPD has a fast reaction time, a low level of protection, and a large voltage leakage capability with long service life. The surge protectors do not generate any line following the current. When conditions are unknown so there is a danger through overloads, the cut-off unit securely disconnects the arrester from the mains. Grab great deals only on surge protection device prices.

Surge Protection Device

  • High transmission frequency.
  • Low signal amplitude.
  • Suitable for all network configurations and all voltages.
  • LED surge protector reduces the maintenance cost.
  • It ensures continuity of service.
  • It extends the life of electrical devices.
  • With cloud-based surveillance or predictive assessment of pluggable protection devices, you can know what’s going on ahead of time.
  • Working frameworks designs and connectivity technologies for many applications.
    • Electric power supply networks.
    • Telephone networks.
    • Communication devices and electrical buses.
    • Control and Measurement technology.
    • Used in circuits of Information Technology.
    • Receivers and Transmitters

Driven By Values, Delivering On A Vision.

When the voltage reaches the critical point, surge protectors simply detours that extra energy with the aid of a pressure-sensitive valve. With the correct voltage, the current flows through as normal, but with a spike or surge, the device kicks-in immediately and redirects the excess.

Electrical establishments in single dwelling units are not needed to have SPDs (Surge Protection Devices) introduced. However, their utilization isn’t blocked and it could be that in conversation with a customer such gadgets are introduced, decreasing huge dangers related to transient over-voltages.

In an electrical framework, Surge Protection Devices (SPDs) are normally introduced in tap-off design (in parallel) between the live conductors and the earth. The working standard of SPD can be like that of an electrical switch.

Surge protectors offer security in sums called Joules. For the most part, the more Joules the better, as this implies the gadget can deal with one huge surge or different more modest surges before your stuff is in harm’s way. After some time, the parts inside the defender wear out, diminishing its viability.
